Castel del Monte - Mathematical Model and the Unit of Measurement - Mathematical Model Spreadsheet

Page 3

Mathematical Model Spreadsheet

A spreadsheet layout of the mathematical model is implemented in Microsoft Excel, Fig. 3.

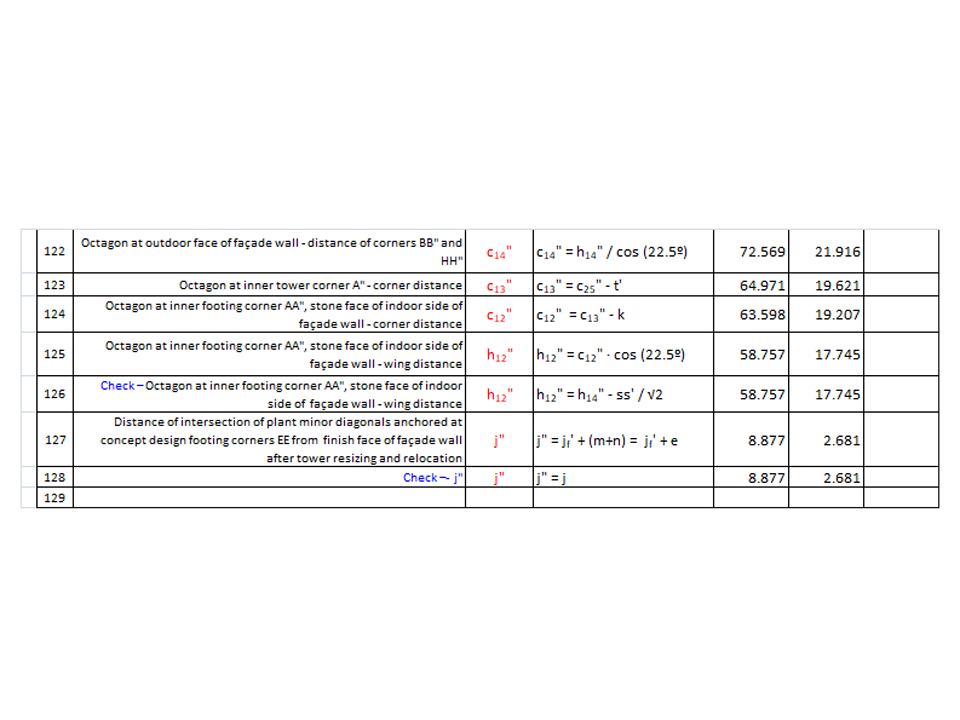

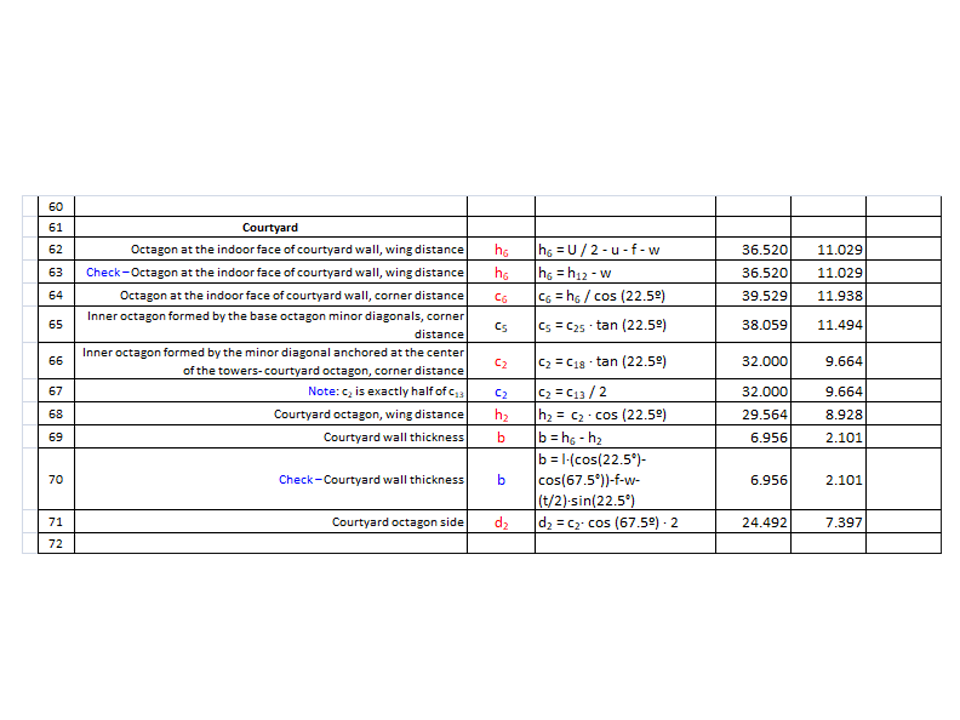

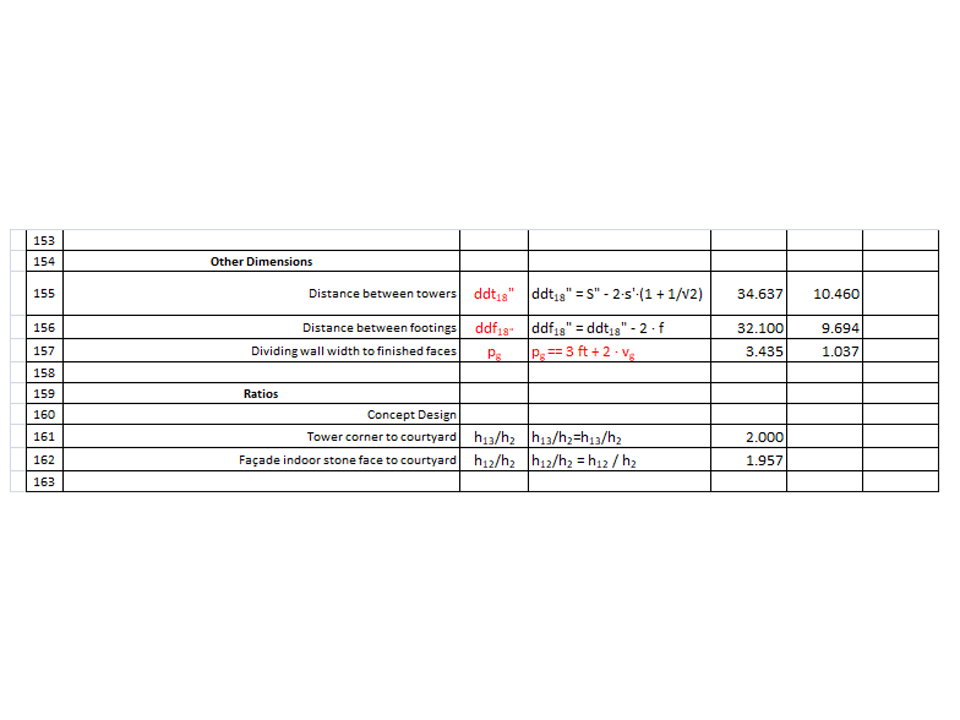

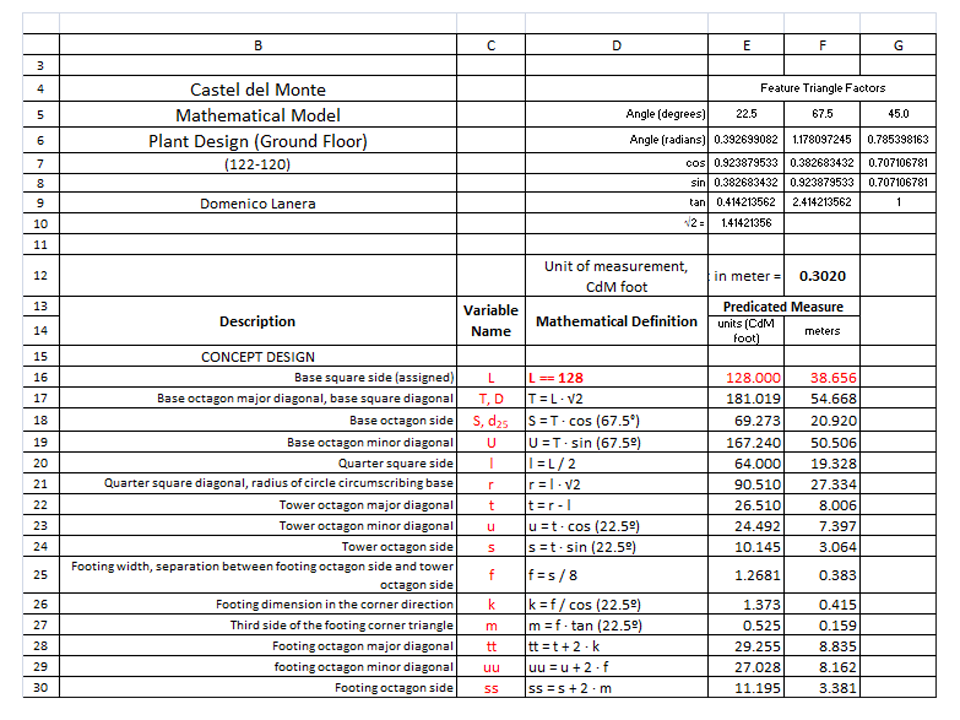

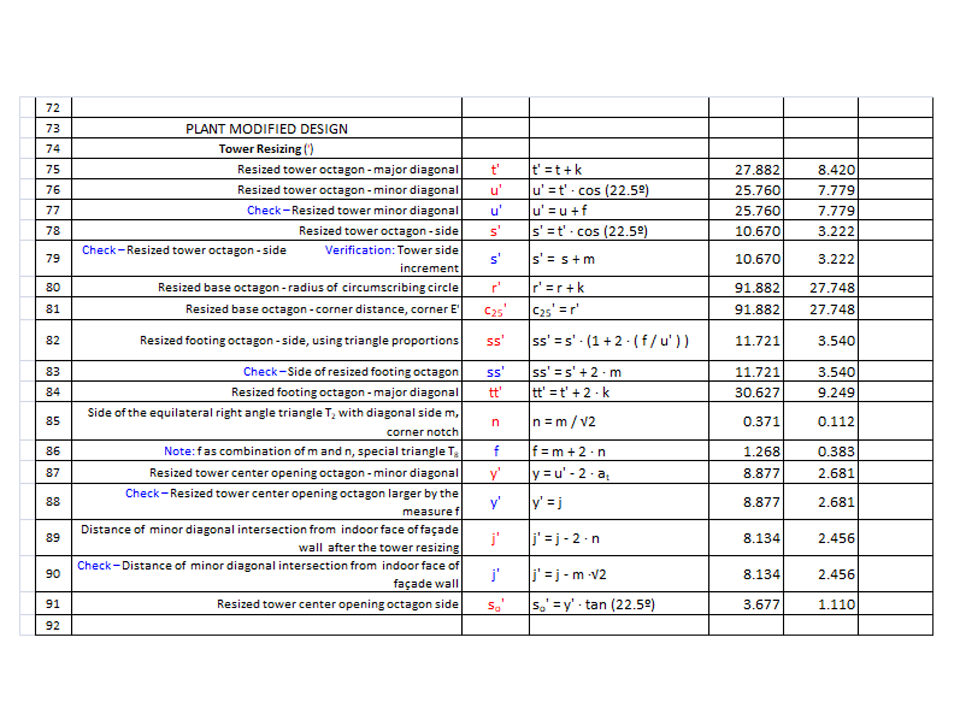

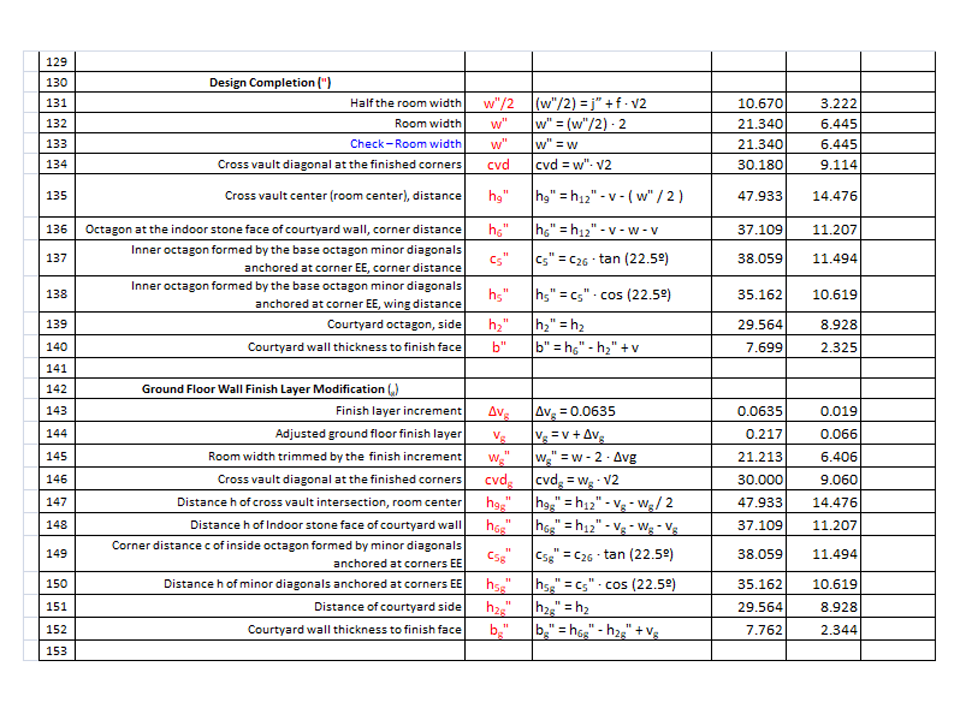

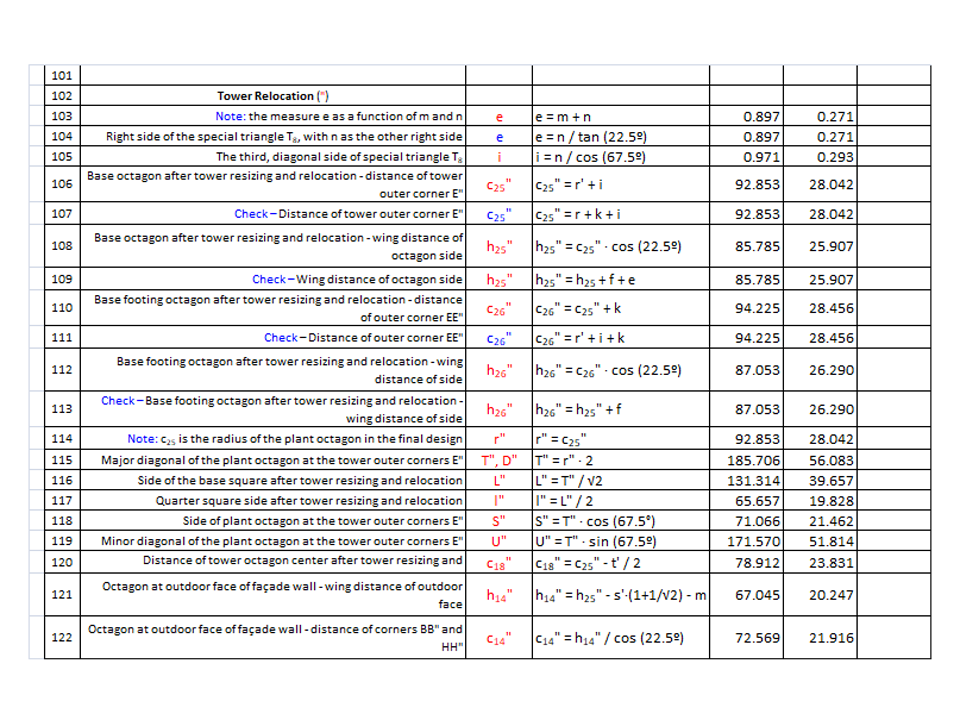

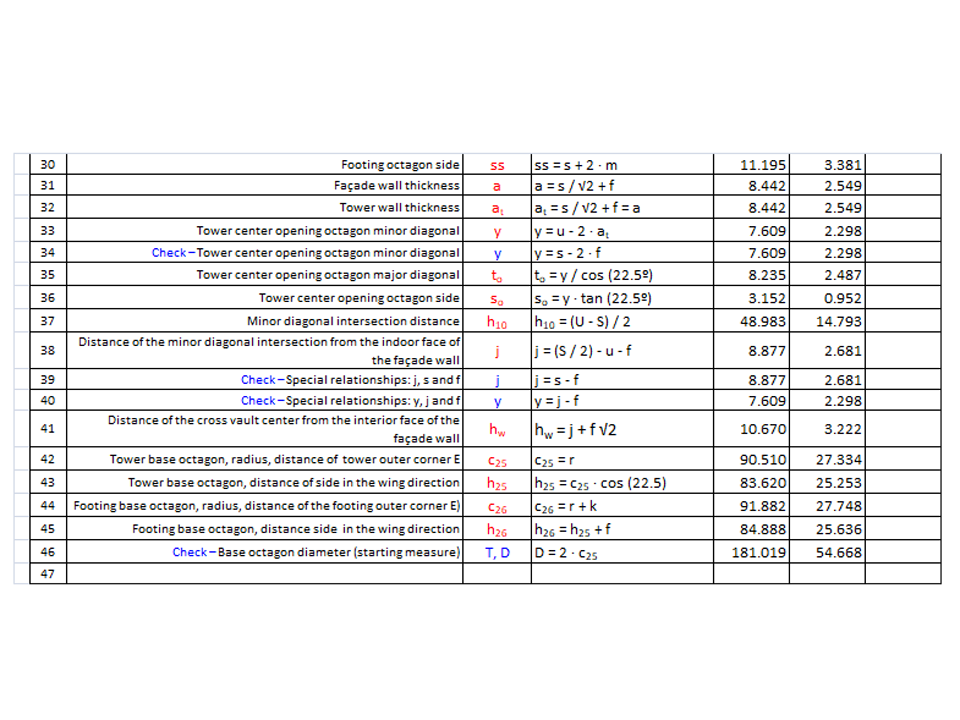

Figure 3. Spreadsheet (in ten parts).

Spreadsheet part 1

Fig-3-6

Spreadsheet part 2

Fig-3-1

Spreadsheet part 3

Fig-3-2

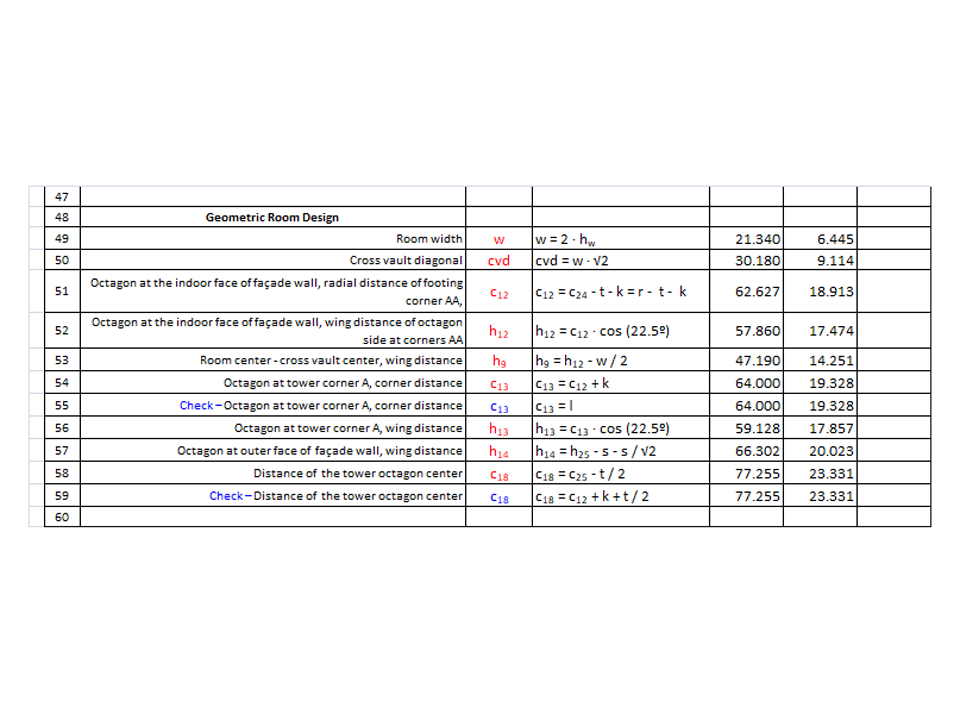

Spreadsheet part 4

Fig-3-3

Spreadsheet part 5

Fig-3-4

Spreadsheet part 6

Fig-3-5

Spreadsheet part 7

Fig-3-6

Spreadsheet part 8

Fig-3-4

Spreadsheet part 9
Fig-3-5

Spreadsheet part 10

Fig-3-6
