Content of the 2004 Training Tool
for the ELF Interfeence Mitigation Training of Electric Power Utilites in Michigan |
| The tool developed and used by Domenico in 2004 for training of personnel at the electric power utilities is designed to work and operate from within a browser, but incorporate files of various formats (html, pdf, ppt, swf, media, pictures both jpg and gif, etc) that have to be downloaded. |
| Some browsers block file downloading altogether or limit in various ways their displaying. All browsers now block Flash animated videos (swf files) for security reasons, and these had to be converted to mp4 files. Furthermore, many are Microsoft Power Point files which require the host device to have the Power Point application. |
| Although made available for viewing and use, the actual tool (Training2004) is cumbersome and difficult to use. In part this was done on purpose to discourage anybody else from using it. It was a proprietary tool developed with personal resources and intended to promote and sell consulting services. |
| Its actual use has lost its purpose and value, but the content is rich in graphics and animations and is worth of viewing. Following is an outline of the content not necessarily in the original presentation sequence intent. |
|
|
|
Collection of the content from all ppt files.
|
|

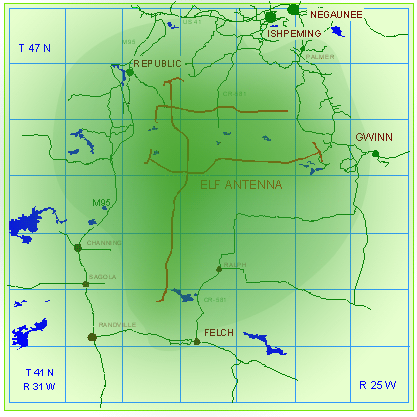

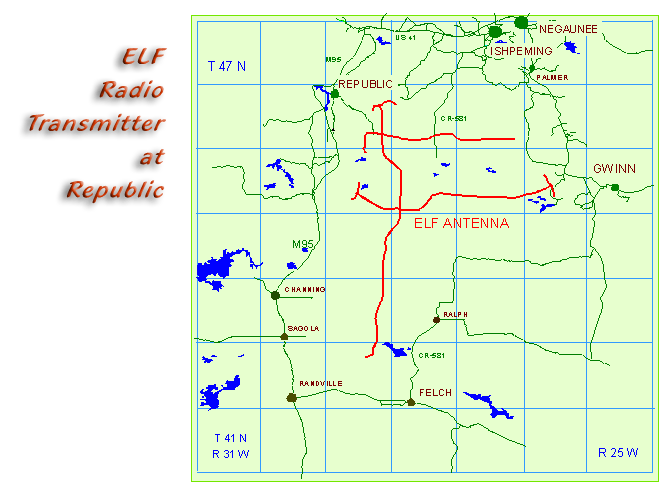

ELF antenna in Michigan and the geographical extent and intensity of the associated elecric field.
|
|
|
|
ELF Interference Area at Republic, Michigan
|
|

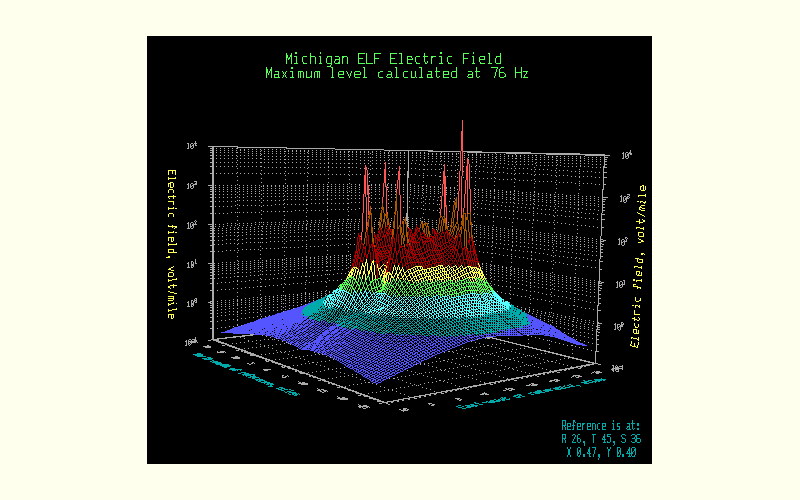

ELF Interference Levels at Republic, Michigan
|
|
ELF curren flowing in the earth. |
|
Shallow current loop in conductive earth. |
|
Deep current loop forms when earth conductivity is low. |
|
Deep current loop works as an effective antenna. |
|
ELF radio signal creation. |
|
ELF radio signal propagation around the earth. |
|
Safety concerns for people due to ELF current flowing in the earth. |
|
Utility lines grounded conductors extend safety concerns to utility customers. |
|
Safety concerns of ELF voltages on power utility neutral conductors. |
|
ELF voltasgs on power utility three-phase lines. |
|
Normal fuses cutout operation on single-phase line. |
|
Fused cutouts may not resolve faults on phase-to-phase connected transformers, causing undervoltage situations. |
|
Mitigation scheme at a service transformer near a residence. |
|
Specifications for mitigation construction at a service transformer pole. |
|
Michigan ELF mitigation rquirements by township and range. (Embedded links do not wwork; not needed.) |
|
Elbow mitigation and testing at pad-mounted transformers. (Embedded links do not wwork; use scroll bar.) |
