Metallic pipes in contact with the earth, whether in concrete inside the barn or in the earth between buildings, can also cause voltage gradients when they are connected to the electrical power system ground. Metallic pipes act like long, horizontal ground rods with spreading-type gradients. The following is an illustration of these gradients on the surface of the earth.

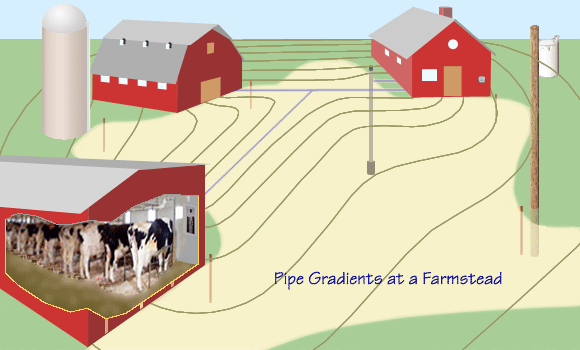

Ground rod gradients at a farmstead.
go to top of page
Water pipes that interconnect farm buildings may act as conductors as well as grounding electrodes. This happens when they are connected to the farm grounding system at more than one location. Because the pipes are generally not insulated from the earth, the amount of current coming out of one end is less than what goes in at the other end, with the difference becoming earth current along the length of the pipe. When pipes are buried deeply, the voltage gradients on the earth's surface are less significant.
The farmstead may have many other systems that are in contact with both the electric system and the earth (e.g. foundations incorporating structural steel). These systems may act like pipe grounding systems, causing nearby voltage gradients.
